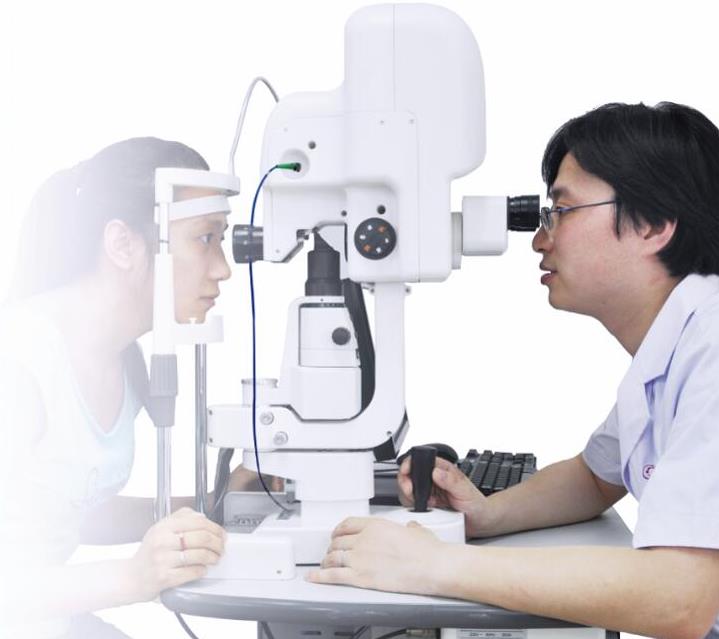

The integrated front and rear OCT of the slit lamp microscope allows doctors to directly observe the fundus condition and perform OCT scanning through the eyepiece on the same device, greatly improving work efficiency. The RetinaView OCT 2000 has a comprehensive and diverse range of scanning modes and analysis programs, providing insights for retinal diseases
Consult us
Retinal diseases

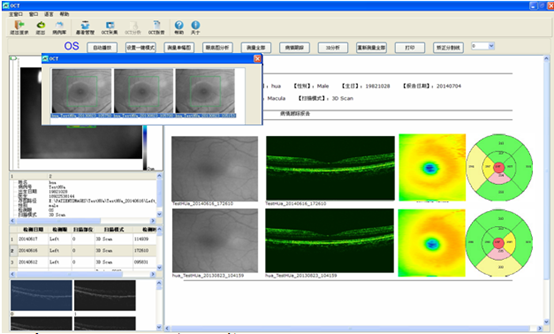

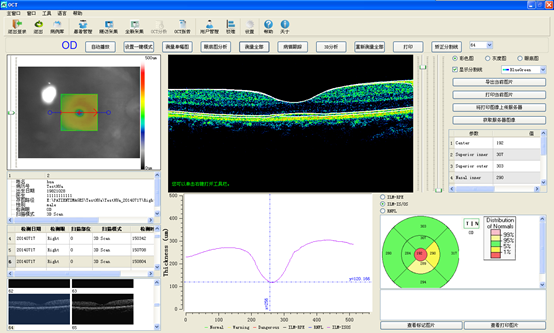

3D scanning provides a "carpet style" scan of the 6mm macular area, which can not only obtain up to 512 OCT images, but also obtain a topographic map of retinal thickness through professional calculation software, providing intuitive and accurate qualitative and quantitative analysis for the diagnosis of retinal diseases. At the same time, it can also provide follow-up analysis to help doctors determine the progression of the disease and the effectiveness of treatment.
glaucoma
By scanning the optic disc and retinal nerve fiber layer, RNFL (retinal nerve fiber layer thickness) maps and relevant parameters of the optic disc cup are obtained, providing reliable quantitative analysis data for the diagnosis of glaucoma.

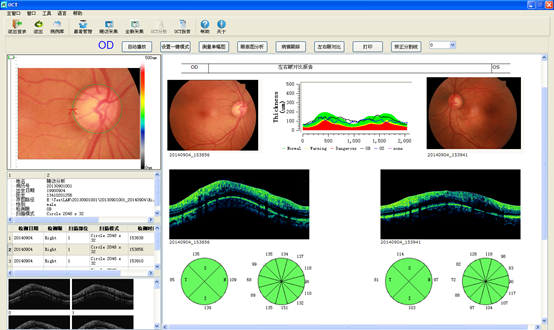

The following figure shows the thickness of the retinal nerve fiber layer in both eyes
Front section
Equipped with specialized corneal lenses for scanning the anterior segment of the eye, high-resolution corneal and angle OCT imaging can be obtained, and corneal thickness measurement, anterior chamber angle measurement, etc. can be performed, providing richer examination results for glaucoma, refractive and ocular surface diseases, etc.

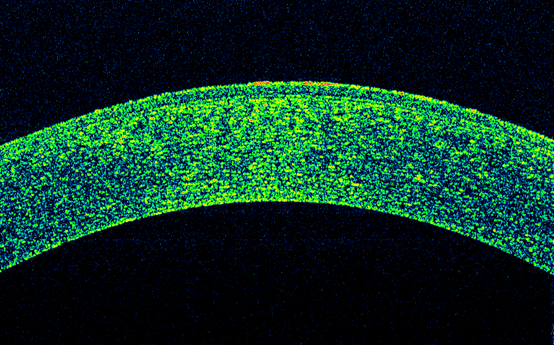

Below: Corneal OCT image display
| Type | Describe |
|---|---|
| Axial resolution | 5μm |
| Horizontal resolution | 15μm |
| Scan depth | 2.5mm |
| scanning speed | 27,000 A-scan/second |
| Pupil requirements | ≥3mm |
| light source | Super radiation diode, 840nm |
| Scanning mode | 3D scanning, raster scanning, radial scanning, circular scanning, high-definition scanning |
| Analysis software | Retina: Macular thickness topographic map, follow-up analysis map, binocular contrast analysis map Glaucoma: RNFL thickness profile map, RNFL thickness quadrant map, RNFL thickness clock map, optic disc/cup/rim area, cup to disc ratio, etc Anterior segment: corneal thickness topographic map, corneal curvature topographic map, corneal/angle high-definition map |
