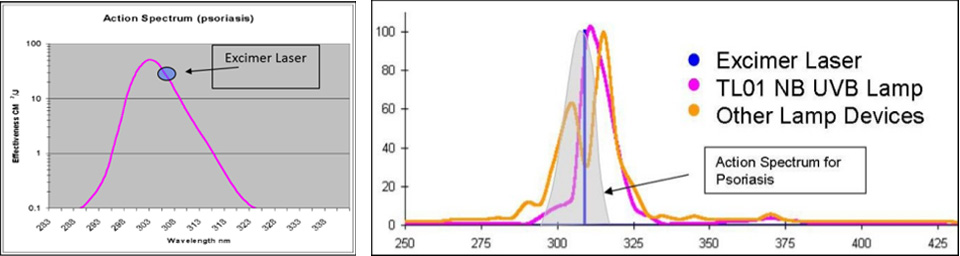

Ideal wavelength：308 nm UVB is close to the peak of the spectrum of T cell apoptosis, making it an ideal choice for treating T cell-mediated and inflammatory diseases

Accurate positioning：When the laser is emitted, the laser beam matches the aiming beam and only targets the diseased tissue, protecting healthy skin from damage.

Adjustable light spot：The unique handle has an integrated adjustable light spot, and gently sliding the switch on the handle can adjust the appropriate size of the light spot according to the shape of the skin lesion. The light spot can be infinitely adjusted from 2-18mm, making it very safe and convenient for the treatment of special areas and small lesions




Collimated emission:The unique optical lens design produces a more collimated laser beam with minimal scattering. This optical design helps patients achieve optimal clinical outcomes, even for difficult to treat psoriasis (such as palmar and plantar psoriasis) and refractory vitiligo




Parallel beam:Non Gaussian mode, flat topped beam without hotspots, ensuring energy balance and painless treatment process

The system uses 308nm excimer laser to act on the target site, promoting T cell apoptosis, inhibiting local immune stimulation of vitamin D3 production, promoting melanin production and melanocyte proliferation, achieving the goal of treating psoriasis and vitiligo

Kangao Jindian ™EX-308—— Intelligent positioning laser therapy for psoriasis：

The unique adjustable aperture provides accurate targeted treatment for psoriasis lesions, while protecting healthy skin from damage. The treatment process only lasts for a few minutes, and most patients improve within 10 treatments or less. Non photothermal therapy, painless during treatment, suitable for all ages and skin types. There is good treatment for stubborn plaques and challenging areas including hands, feet, scalp, elbows and knees, as well as adjacent skin areas.

Research results:After 10 or fewer treatments, 84% of patients achieved 75% or better improvement, and 50% of patients had over 90% improvement

Kangao Jindian ™EX-308—— Intelligent positioning laser treatment for vitiligo

The dual pronged approach to successfully achieve pigment regeneration：

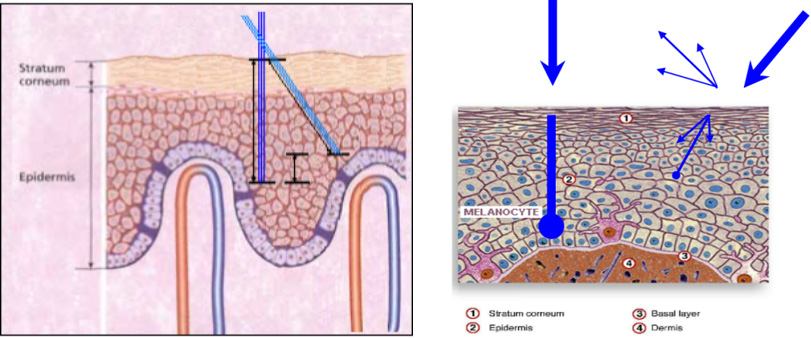

Step 1：Using monochromatic 308 nm UVB laser, it guides T cell apoptosis, targets the destruction of white blood cells, prevents the destruction of melanocytes and patchy depigmentation in patients, and prevents the development of diseases in infected areas.

Step 2：At the same time, the 308 nm UVB laser can stimulate melanocytes remaining in areas of depigmentation, enabling them to produce large amounts of melanocytes, which in turn can restore normal skin color to the skin.

Precise targeted therapy only targets areas with depigmentation, preventing excessive darkening of the surrounding skin; The treatment time only takes a few minutes, and most patients can see improvement within two months. The average treatment time for major pigmentation is about three months; The treatment of the face, including the periorbital area, is very ideal

• Avoid excessive pigmentation

• More effective than NB UVB

• Effective color fading can be achieved within 30 treatments

• It is also effective for the face, including the orbital area

• No peripheral normal skin darkening, skin degeneration, or PUVA complications

Laser type	XeCI Excimer Laser
Laser wavelength	308nm
Pulse repetition frequency	Variable, 20Hz to 150Hz
Maximum irradiation dose	5000mj/cm2
Maximum output power	2.25W
pulse width	20-35ns
Spot size	2-18mm Stepless adjustable
transmission system	Liquid fiber optic
Maximum single pulse energy	15mj
Power Supply	220V，3A，47-63Hz
volume	36x68x82cm2
authentication	FDA CFDA CE
